Description

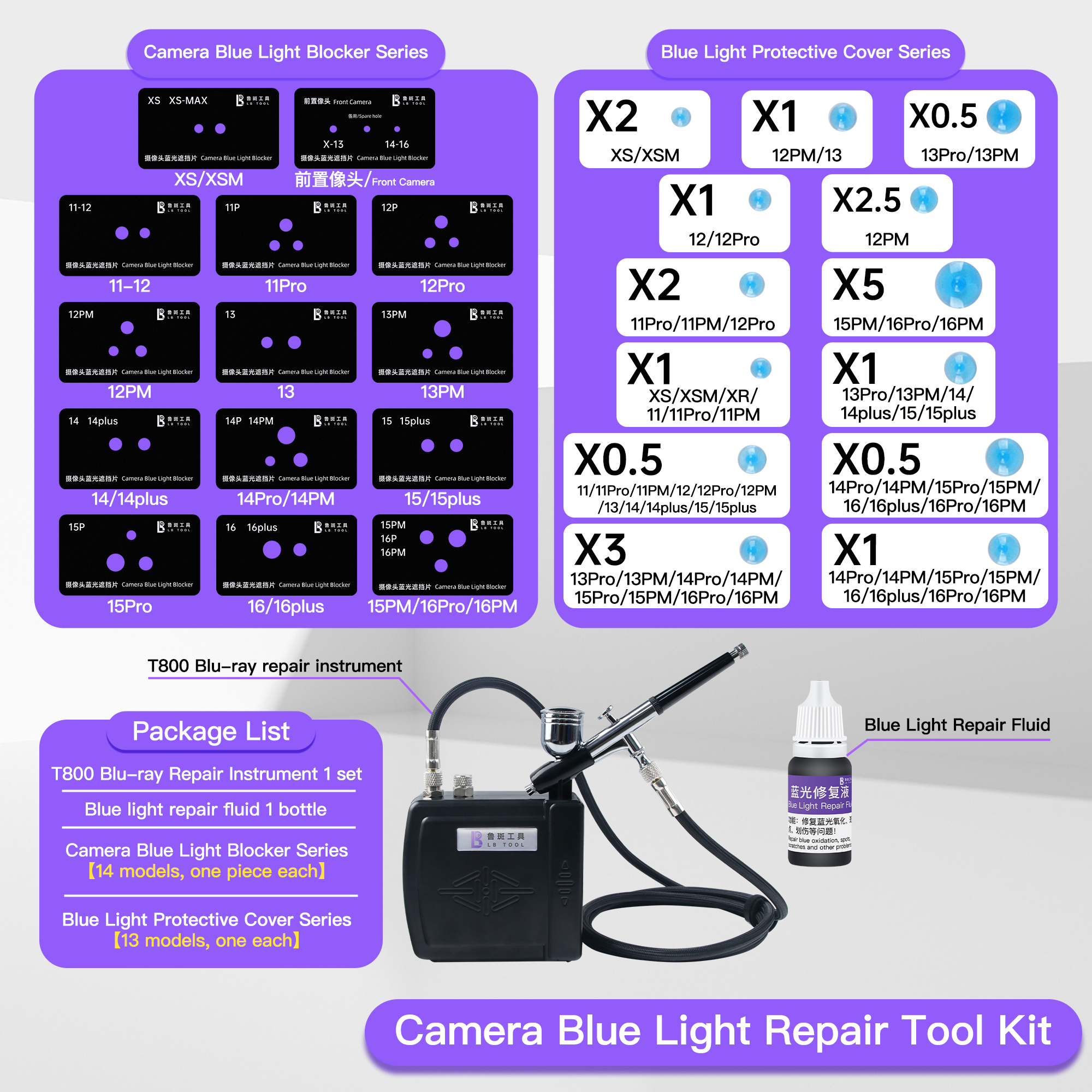

The LuBan T800 Phone Camera Blue Light Coating Repair Instrument for iPhone cameras refurbishment. It is designed to restore your camera lens from oxidation, scratches, spots, black light and stains. It ensures uniform color, reduces glare, and maintains lens cleanliness effortlessly.
Features | LuBan T800 Phone Camera Blue Light Coating Repair Instrument
Quickly repair camera lens blue light coating oxidation, scratches, spots, black light and stains by spraying.
Control the atomization size using the knob at the tail section of the spray pen. Turn counterclockwise to increase or clockwise to decrease.
Features a long-stroke, round-point trigger, offering sensitive feel and precise ink output control. Press down and slowly pull the trigger to control ink flow.
Air pressure can be adjusted between 15-25 PSI using a stepless shunt bucking mechanism. The pressure regulator switch automatically stops or starts the compressor based on usage.
The 360-degree rotatable spray pen makes it easy to use from any angle.
Comes with a blue light repair tool for lens restoration.Operational Steps
Connect the spray pen to the air outlet using the tube and plug in the power.
Fill the pigment cup with water and test spray. Pull the trigger to transition from air spray to water spray. Adjust the spray size using the spray pen knob
Cover the lamp beads with a blue light lens protector. Use a blue light repair mask to shield other areas.
Add blue light repair liquid to the pigment cup. Spray a thin layer, then use air alone to dry the repair liquid. Repeat until the lens is completely restored.
Remove the lens protector and the repair mask after finishing the spraying process.
After use, clean the spray pen thoroughly to prevent clogging. Fill the pigment cup with water, cover the air outlet with your hand, and press the trigger to flush out any residue.
Specifications
Motor: DC 12V
Air Flow: 10.5 L/min
Regulating Method: Stepless shunt bucking
Working Pressure: 2-15 PSI
Auto Stop: 25 PSI
Auto Start: 15 PSI

Noise Level: 47 decibels

Dimensions: 110 x 55 x 120 mm

Main Body Weight: 0.52 kg

AC Transformer:

Input: 100V-240V 50/60Hz 0.6A
Output: 12V 1.6A

Safety Instructions
For indoor use only. Avoid high temperatures and humid environments.
Keep away from toxic, flammable, or explosive materials.
Disconnect the device from the power supply in case of irregularities.
Maintain spray gun cleanliness and store in a dry place away from direct sunlight or temperatures exceeding 35°C.

Compatible Models
XS / XS Max / XR
11 / 11 Pro / 11 Pro Max
12 / 12 Pro / 12 Pro Max
13 / 13 Pro / 13 Pro Max
14 / 14 Plus / 14 Pro / 14 Pro Max
15 / 15 Plus / 15 Pro / 15 Pro Max
16 / 16 Plus / 16 Pro / 16 Pro Max

Packing

• Carton Box
